Trigger Hodoscope
Trigger Hodoscope

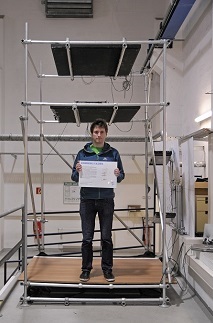

The Trigger Hodoscope consists of parts of scintillation counters that were used in the L3-cosmic experiment at CERN until 2000. It was installed in Zeuthen by the DESY L3-cosmic group to perform systematic studies with cosmic particles for possible future projects.
Since 2010 the hodoscope has been continuously taking data which is available via the web portal Cosmic@Web to offer students the possibility to investigate cosmic particles.
One segment has an area of 0.5 × 0.5 m2 and consists of 4 scintillator tiles. If a cosmic particle traverses the scintillator, it creates a short scintillating light flash which is directed to the two PMTs via the light guiding fibres (embedded in the scintillator plates). The signal will only be accepted as an event, if both PMTs detect the light simultaneously.
Additional coincidence conditions require a signal to appear in at least one segment of each plane. If each plane shows exactly one signal, there is a high probability that a muon was detected. Another coincidence setting enables further interpretation: if all three planes show signals in all four segments, the event is considered a particle shower. But to simplify the analysis, only one additional coincidence requirement is used: every plane has to show a signal in all four segments, which is the indicator of a particle shower.
Setup
- 3 scintillation detector planes with 4 independent segments per plane,
- every segment is read out by 2 PMTs to avoid random signals,
- electronics modules for the high voltage supply of the PMTs and for data acquisition,
- a DAQ card,
- a notebook to control settings in the electronics and to store the data.
The Trigger Hodoscope consists of:
Data Structure
Cosmic@Web provides the following data per hour for the Trigger Hodoscope since 2010: time, number of triggers per hour (from muon candidates) for the different geometrical combinations, total number of muon candidates per hour, number of particle showers per hour, atmospheric pressure, temperature, humidity. More details can be found in the description of the dataset.

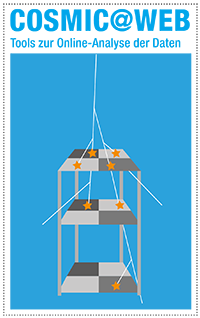

The schematic illustration shows the 3 detector planes.
The distance between 1 (top) and 2 is 70cm, between 2 and 3 (bottom) 220cm.
Possible Student Exercises
Example Diagrams
- What is striking about this graph? What could be an explanation for that?
At Cosmic@Web you will find few example diagrams using the Session-ID Trigger-Hodoskop.
This xy diagram shows the measured muon rates over time. A muon signal is recorded by the trigger hodoscope when at least one segment in each plane is hit.
Here, only a certain period of time was taken into consideration. The exact settings can be found on the session ID Trigger-Hodoskop.
