PROTON STRUCTURE
QCD Fit HERAPDF1.5LO:
H1prelim-13-141, ZEUS-prel-13-003Part of the HERA II data has been combined (H1-prelim-10-141,ZEUS-prel-10-017). The PDF set HERAPDF1.5 represents the QCD analysis of the combined HERA I including the preliminary combination of the HERA II data. Such, higher precision at high Q2 and high x is achieved. The precision of the PDFs at high x is significantly improved, particularly in the valence sector.
(1) HERAPDF1.5 LO Q2=1.9 GeV2![fig1](proton_structure/fits2013_herapdf1.5LO_plots_thumb/fig1.gif)
HERAPDF1.5 LO Q2=1.9 GeV2
(2) HERAPDF1.5 LO Q2=10 GeV2
![fig2](proton_structure/fits2013_herapdf1.5LO_plots_thumb/fig2.gif)
HERAPDF1.5 LO Q2=10 GeV2
(3) HERAPDF1.5 LO Q2=100 GeV2
![fig3](proton_structure/fits2013_herapdf1.5LO_plots_thumb/fig3.gif)
HERAPDF1.5 LO Q2=100 GeV2
(4) HERAPDF1.5 LO Q2=10000 GeV2
![fig4](proton_structure/fits2013_herapdf1.5LO_plots_thumb/fig4.gif)
HERAPDF1.5 LO Q2=10000 GeV2
(5) e+p NC cross section vs HERAPDF1.5 LO Q2 from 2 GeV2 to 120 GeV2
![fig5](proton_structure/fits2013_herapdf1.5LO_plots_thumb/fig5.gif)
e+p NC cross section vs HERAPDF1.5 LO Q2 from 2 GeV2 to 120 GeV2

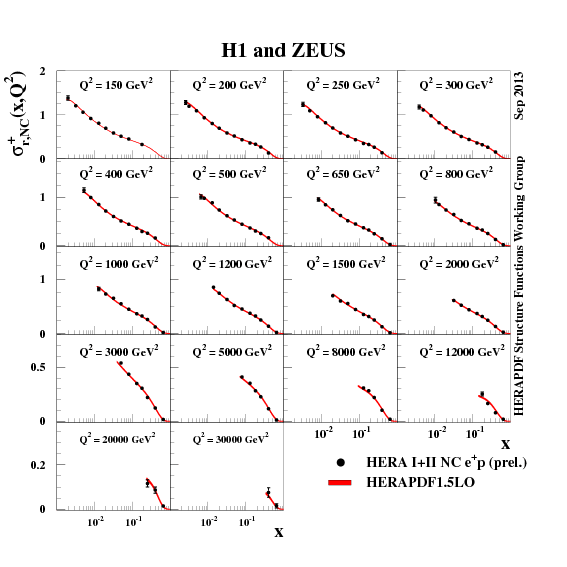

(6) e+p NC cross section vs HERAPDF1.5 LO Q2 from 150 GeV2 to 30000 GeV2
![fig6](proton_structure/fits2013_herapdf1.5LO_plots_thumb/fig6.gif)
e+p NC cross section vs HERAPDF1.5 LO Q2 from 150 GeV2 to 30000 GeV2
(7) e-p NC cross section vs HERAPDF1.5 LO
![fig7](proton_structure/fits2013_herapdf1.5LO_plots_thumb/fig7.gif)
e-p NC cross section vs HERAPDF1.5 LO
(8) e-p CC cross section vs HERAPDF1.5 LO
![fig8](proton_structure/fits2013_herapdf1.5LO_plots_thumb/fig8.gif)
e-p CC cross section vs HERAPDF1.5 LO
(9) e+p CC cross section vs HERAPDF1.5 LO
![fig9](proton_structure/fits2013_herapdf1.5LO_plots_thumb/fig9.gif)
e+p CC cross section vs HERAPDF1.5 LO
