BaseFitObject Class Reference

Abstract base class for particle objects of kinematic fits. More...

#include <BaseFitObject.h>

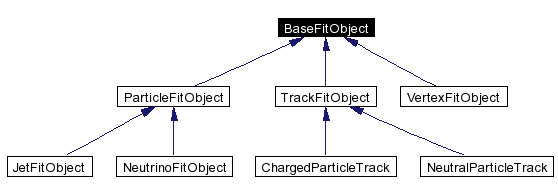

Inheritance diagram for BaseFitObject:

[legend]List of all members.

Public Member Functions
virtual	~BaseFitObject ()
virtual bool	setParam (int ilocal, double par_, bool measured_, bool fixed_=false)=0
	Set value and measured flag of parameter i; return: success.
virtual bool	setParam (int ilocal, double par_)=0
	Set value of parameter ilocal; return: success.
virtual bool	setMParam (int ilocal, double mpar_)=0
	Set measured value of parameter ilocal; return: success.
virtual bool	setError (int ilocal, double err_)=0
	Set error of parameter ilocal; return: success.
virtual bool	setCov (int ilocal, int jlocal, double cov_)=0
	Set covariance of parameters ilocal and jlocal; return: success.
virtual bool	setGlobalParNum (int ilocal, int iglobal)=0
virtual bool	fixParam (int ilocal, bool fix=true)=0
	Fix a parameter (fix=true), or release it (fix=false).
virtual bool	releaseParam (int ilocal)
	Release a parameter.
virtual bool	isParamFixed (int ilocal) const=0
	Returns whether parameter is fixed.
virtual double	getParam (int ilocal) const=0
	Get current value of parameter ilocal.
virtual const char *	getParamName (int ilocal) const
	Get name of parameter ilocal.
virtual const char *	getName () const
	Get object's name.
virtual void	setName (const char *name_)
	Set object's name.
virtual double	getMParam (int ilocal) const=0
	Get measured value of parameter ilocal.
virtual double	getError (int ilocal) const=0
	Get error of parameter ilocal.
virtual double	getCov (int ilocal, int jlocal) const=0
	Get covariance between parameters ilocal and jlocal.
virtual bool	isParamMeasured (int ilocal) const=0
	Get measured flag for parameter ilocal.
virtual int	getGlobalParNum (int ilocal) const=0
	Get global parameter number of parameter ilocal.
virtual int	getNPar () const=0
	Get total number of parameters of this FitObject.
virtual int	getNMeasured () const
	Get number of measured parameters of this FitObject.
virtual int	getNUnmeasrd () const
	Get number of unmeasured parameters of this FitObject.
virtual int	getNFree () const
	Get number of free parameters of this FitObject.
virtual int	getNFixed () const
	Get number of fixed parameters of this FitObject.
virtual void	addToGlobCov (double *glcov, int idim) const=0
virtual double	getChi2 () const=0
	Get chi squared from measured and fitted parameters.
virtual double	getDChi2DParam (int ilocal) const=0
	Get derivative of chi squared w.r.t. parameter ilocal.
virtual double	getD2Chi2DParam2 (int ilocal, int jlocal) const=0
	Get second derivative of chi squared w.r.t. parameters ilocal1 and ilocal2.
virtual void	addToGlobalChi2DerMatrix (int idim, double *M) const=0
	Add derivatives of chi squared to global covariance matrix.
virtual void	addToGlobalDerMatrix (int idim, double c, double *M) const=0
	Add derivatives to global covariance matrix.
virtual std::ostream &	printParams (std::ostream &os) const
	print the parameters
virtual std::ostream &	print (std::ostream &os) const=0
	print object to ostream
Related Functions
(Note that these are not member functions.)
std::ostream &	operator<< (std::ostream &os, const BaseFitObject &bfo)
	Prints out a BaseFitObject, using its print method.

---

Detailed Description

Abstract base class for particle objects of kinematic fits.

This class defines the minimal functionality any fit object must provide. The main task of a fit object is to keep parameters (and errors) that define the four-momentum of a particle and encapsulate the actually chosen parametrisation from the rest of the fitting machinery.

Since for the fit a parametrisation distributed like a gaussian is most favorable, different kinds of particles (implying different kinds of measurements!) might require different parametrisations. For each desired parametrisation a concrete class should be derived from this abstract base class. It needs to be able to convert its parameters to E, px, py, pz and to provide the derivatives of E, px, py, pz with respect to the internal parameters.

Depending on the type of particle, some or all parameters might be unmeasured (neutrinos!), meaning that they come with a very large and/or unknown error. They are treated differently by the fit algorithm and are thus flagged accordingly.

In order to insert its derivatives into the global covariance matrix of all FitObjects in the event, each FitObjects needs to know the position of its parameters in the overall parameter list.

THIS iS JUNK!!!! It is done like this in JetFitObject.C, but using measured[i] which is the bool giving the measured/unmeasured status and NOT a bool containing the START VALUES!!!!! From its stored initial parameters and the current fit parameters the FitObject calculates its contribution to the $^2$ of the fit.

In its current state, a BaseFitObject has a set of parameters, some of them measured (i.e., they contribute to the ). These parameters have a local numbering, running from 0 to n-1. Global numbers can be assigned by the BaseFitter using setGlobalParNum.

The class WWFitter needs the following routines from BaseFitObject:

• BaseFitObject::getNPar
• BaseFitObject::getMeasured
• BaseFitObject::getGlobalParNum
• BaseFitObject::getParam
• BaseFitObject::setParam
• BaseFitObject::addToGlobCov
• BaseFitObject::operator<<
• BaseFitObject::setError

Author: Benno List, Jenny Böhme

Date

2007/09/14 10:58:42

Author

blist

Changelog:

• 30.12.04 BL: Added getCov, setCov
• 11.1.05 BL: return type of setParam changed to bool

Definition at line 85 of file BaseFitObject.h.

---

Constructor & Destructor Documentation

virtual BaseFitObject::~BaseFitObject (   )  [inline, virtual]

Definition at line 87 of file BaseFitObject.h.

---

Member Function Documentation

virtual void BaseFitObject::addToGlobalChi2DerMatrix (  int  idim, double *  M )  const [pure virtual]

Add derivatives of chi squared to global covariance matrix. Parameters: idim  First dimension of global covariance matrix M  Global covariance matrix Implemented in ChargedParticleTrack, NeutralParticleTrack, ParticleFitObject, TrackFitObject, and VertexFitObject.

virtual void BaseFitObject::addToGlobalDerMatrix (  int  idim, double  c, double *  M )  const [pure virtual]

Add derivatives to global covariance matrix. Parameters: idim  First dimension of global covariance matrix c  Constant by which to multiply derivatives M  First dimension of global covariance matrix Implemented in ChargedParticleTrack, JetFitObject, NeutralParticleTrack, NeutrinoFitObject, ParticleFitObject, TrackFitObject, and VertexFitObject. Referenced by NewtonFitter::fit().

virtual void BaseFitObject::addToGlobCov (  double *  glcov, int  idim )  const [pure virtual]

Add covariance matrix elements to global covariance matrix of size idim x idim Implemented in NeutralParticleTrack, ParticleFitObject, TrackFitObject, and VertexFitObject.

virtual bool BaseFitObject::fixParam (  int  ilocal, bool  fix = true )  [pure virtual]

Fix a parameter (fix=true), or release it (fix=false). Parameters: ilocal  Local parameter number fix  fix if true, release if false Implemented in ParticleFitObject, TrackFitObject, and VertexFitObject. Referenced by releaseParam().

virtual double BaseFitObject::getChi2 (   )  const [pure virtual]

Get chi squared from measured and fitted parameters. Implemented in ParticleFitObject, TrackFitObject, and VertexFitObject.

virtual double BaseFitObject::getCov (  int  ilocal, int  jlocal )  const [pure virtual]

Get covariance between parameters ilocal and jlocal. Parameters: ilocal  Local parameter number i jlocal  Local parameter number j Implemented in ParticleFitObject, TrackFitObject, and VertexFitObject.

virtual double BaseFitObject::getD2Chi2DParam2 (  int  ilocal, int  jlocal )  const [pure virtual]

Get second derivative of chi squared w.r.t. parameters ilocal1 and ilocal2. Parameters: ilocal  Local parameter number i jlocal  Local parameter number j Implemented in ChargedParticleTrack, NeutralParticleTrack, ParticleFitObject, TrackFitObject, and VertexFitObject.

virtual double BaseFitObject::getDChi2DParam (  int  ilocal  )  const [pure virtual]

Get derivative of chi squared w.r.t. parameter ilocal. Parameters: ilocal  Local parameter number Implemented in ChargedParticleTrack, NeutralParticleTrack, ParticleFitObject, TrackFitObject, and VertexFitObject.

virtual double BaseFitObject::getError (  int  ilocal  )  const [pure virtual]

Get error of parameter ilocal. Parameters: ilocal  Local parameter number Implemented in ParticleFitObject, TrackFitObject, and VertexFitObject. Referenced by printParams().

virtual int BaseFitObject::getGlobalParNum (  int  ilocal  )  const [pure virtual]

Get global parameter number of parameter ilocal. Parameters: ilocal  Local parameter number Implemented in ParticleFitObject, TrackFitObject, and VertexFitObject. Referenced by NewtonFitter::fit().

virtual double BaseFitObject::getMParam (  int  ilocal  )  const [pure virtual]

Get measured value of parameter ilocal. Parameters: ilocal  Local parameter number Implemented in ParticleFitObject, TrackFitObject, and VertexFitObject.

virtual const char* BaseFitObject::getName (   )  const [inline, virtual]

Get object's name. Reimplemented in TrackFitObject, and VertexFitObject. Definition at line 138 of file BaseFitObject.h. Referenced by ParticleFitObject::calculateCovInv().

int BaseFitObject::getNFixed (   )  const [virtual]

Get number of fixed parameters of this FitObject. Definition at line 33 of file BaseFitObject.C. References getNPar(), and isParamFixed().

int BaseFitObject::getNFree (   )  const [virtual]

Get number of free parameters of this FitObject. Definition at line 28 of file BaseFitObject.C. References getNPar(), and isParamFixed().

int BaseFitObject::getNMeasured (   )  const [virtual]

Get number of measured parameters of this FitObject. Definition at line 18 of file BaseFitObject.C. References getNPar(), isParamFixed(), and isParamMeasured().

virtual int BaseFitObject::getNPar (   )  const [pure virtual]

Get total number of parameters of this FitObject. Implemented in ChargedParticleTrack, NeutralParticleTrack, ParticleFitObject, TrackFitObject, and VertexFitObject. Referenced by NewtonFitter::fit(), getNFixed(), getNFree(), getNMeasured(), getNUnmeasrd(), and printParams().

int BaseFitObject::getNUnmeasrd (   )  const [virtual]

Get number of unmeasured parameters of this FitObject. Definition at line 23 of file BaseFitObject.C. References getNPar(), isParamFixed(), and isParamMeasured().

virtual double BaseFitObject::getParam (  int  ilocal  )  const [pure virtual]

Get current value of parameter ilocal. Parameters: ilocal  Local parameter number Implemented in ParticleFitObject, TrackFitObject, and VertexFitObject. Referenced by NewtonFitter::fit(), and printParams().

virtual const char* BaseFitObject::getParamName (  int  ilocal  )  const [inline, virtual]

Get name of parameter ilocal. Parameters: ilocal  Local parameter number Reimplemented in ChargedParticleTrack, JetFitObject, NeutralParticleTrack, NeutrinoFitObject, and VertexFitObject. Definition at line 135 of file BaseFitObject.h. Referenced by TrackFitObject::printCov().

virtual bool BaseFitObject::isParamFixed (  int  ilocal  )  const [pure virtual]

Returns whether parameter is fixed. Parameters: ilocal  Local parameter number Implemented in ParticleFitObject, TrackFitObject, and VertexFitObject. Referenced by getNFixed(), getNFree(), getNMeasured(), getNUnmeasrd(), and printParams().

virtual bool BaseFitObject::isParamMeasured (  int  ilocal  )  const [pure virtual]

Get measured flag for parameter ilocal. Parameters: ilocal  Local parameter number Implemented in ParticleFitObject, TrackFitObject, and VertexFitObject. Referenced by getNMeasured(), and getNUnmeasrd().

virtual std::ostream& BaseFitObject::print (  std::ostream &  os  )  const [pure virtual]

print object to ostream Parameters: os  The output stream Implemented in ParticleFitObject, TrackFitObject, and VertexFitObject. Referenced by operator<<().

std::ostream & BaseFitObject::printParams (  std::ostream &  os  )  const [virtual]

print the parameters Parameters: os  The output stream Definition at line 39 of file BaseFitObject.C. References getError(), getNPar(), getParam(), and isParamFixed(). Referenced by VertexFitObject::print(), TrackFitObject::print(), and ParticleFitObject::print().

virtual bool BaseFitObject::releaseParam (  int  ilocal  )  [inline, virtual]

Release a parameter. Parameters: ilocal  Local parameter number Definition at line 123 of file BaseFitObject.h. References fixParam().

virtual bool BaseFitObject::setCov (  int  ilocal, int  jlocal, double  cov_ )  [pure virtual]

Set covariance of parameters ilocal and jlocal; return: success. Parameters: ilocal  Local parameter number jlocal  Local parameter number cov_  New error value Implemented in ParticleFitObject, TrackFitObject, and VertexFitObject.

virtual bool BaseFitObject::setError (  int  ilocal, double  err_ )  [pure virtual]

Set error of parameter ilocal; return: success. Parameters: ilocal  Local parameter number err_  New error value Implemented in ParticleFitObject, TrackFitObject, and VertexFitObject.

virtual bool BaseFitObject::setGlobalParNum (  int  ilocal, int  iglobal )  [pure virtual]

Set number of parameter ilocal in global list return true signals OK Parameters: ilocal  Local parameter number iglobal  New global parameter number Implemented in ParticleFitObject, TrackFitObject, and VertexFitObject.

virtual bool BaseFitObject::setMParam (  int  ilocal, double  mpar_ )  [pure virtual]

Set measured value of parameter ilocal; return: success. Parameters: ilocal  Local parameter number mpar_  New measured parameter value Implemented in ParticleFitObject, TrackFitObject, and VertexFitObject.

virtual void BaseFitObject::setName (  const char *  name_  )  [inline, virtual]

Set object's name. Reimplemented in TrackFitObject, and VertexFitObject. Definition at line 140 of file BaseFitObject.h.

virtual bool BaseFitObject::setParam (  int  ilocal, double  par_ )  [pure virtual]

Set value of parameter ilocal; return: success. Parameters: ilocal  Local parameter number par_  New parameter value Implemented in ChargedParticleTrack, NeutralParticleTrack, NeutrinoFitObject, ParticleFitObject, TrackFitObject, and VertexFitObject.

virtual bool BaseFitObject::setParam (  int  ilocal, double  par_, bool  measured_, bool  fixed_ = false )  [pure virtual]

Set value and measured flag of parameter i; return: success. Parameters: ilocal  Local parameter number par_  New parameter value measured_  New "measured" flag fixed_  New "fixed" flag Implemented in ChargedParticleTrack, NeutralParticleTrack, ParticleFitObject, TrackFitObject, and VertexFitObject.

---

Friends And Related Function Documentation

std::ostream & operator<< (  std::ostream &  os, const BaseFitObject &  bfo )  [related]

Prints out a BaseFitObject, using its print method. Parameters: os  The output stream bfo  The object to print Definition at line 203 of file BaseFitObject.h. References print().

---

The documentation for this class was generated from the following files:

• BaseFitObject.h
• BaseFitObject.C

---
